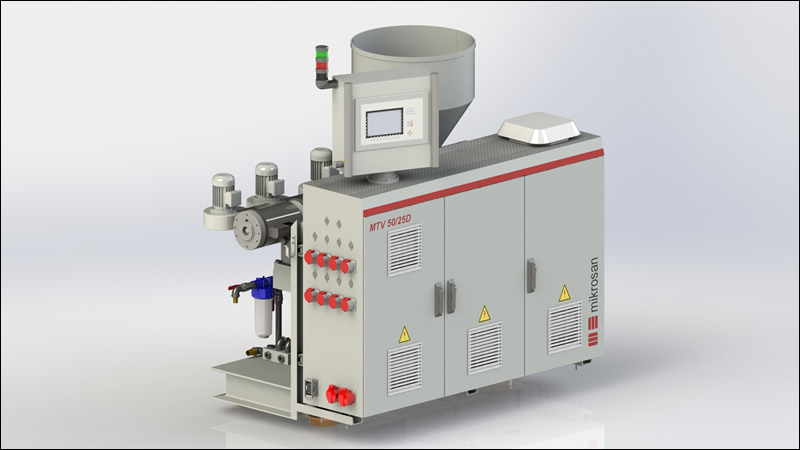

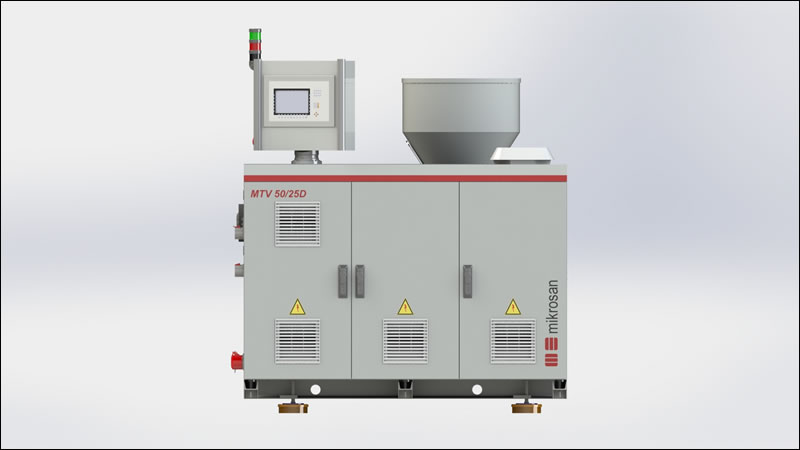

Single Screw Extruder - Profile Series

-Suitable for PVC-U and PVC-P profile production
-25D optimized screw length

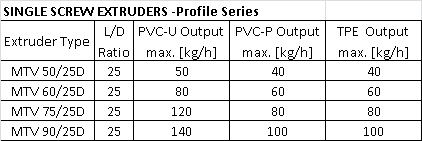

-Output range from 50 kg/h to 140 kg/h
-Constant specific output for all screw speed range
-High melt homogenity
-Low melt temperature
-Smooth feed bush with water-cooled chamber
-Touch screen or analog control panel
-User friendly software developed by Mikrosan
-AC servo motor and drive
-High-efficient gearbox
-Integrated gravimetric dosing system option
-All commercial parts made in Turkey and Europe
-The single screw profile series extruders have proven and robust machine technology for stable and efficient production.
-Screws and barrels are specially designed according to the application and customer requirements.
-Screw and barrel are completely manufactured in Mikrosan including all heat treatment and nitriding process.
