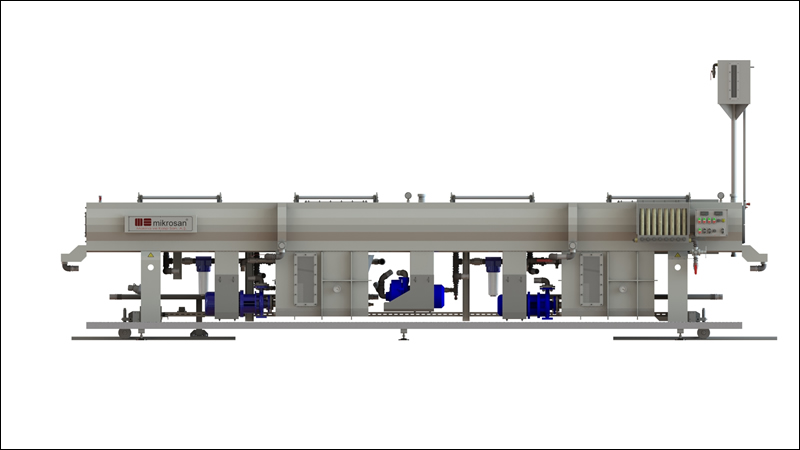

Vacuum Tank
|
 |
| |
-Suitable for PVC, CPVC, HDPE, PP-R and PP-H pipe production
-Diameter range from Ø16 to Ø630 mm

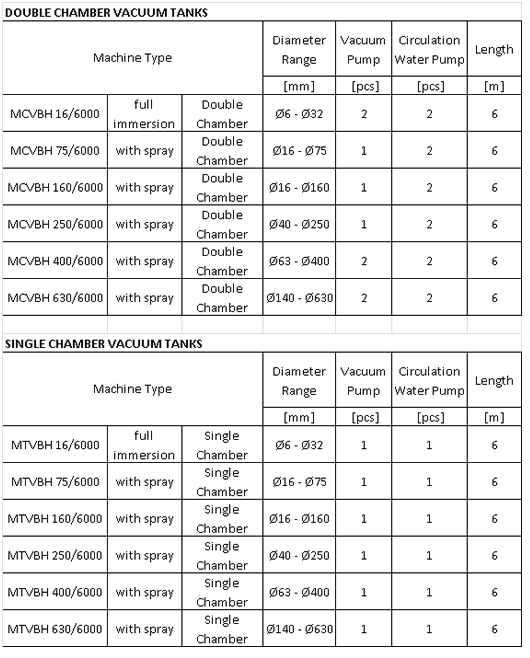

-Double and single chamber options
-304 stainless steel with painted outer surface
|
| |
|
|
|
| |
-Special water sprays are located on the best position for cooling the pipe efficiently
-Special and easy adjusted pipe supports for each pipe diameter
-The vacuum level can be adjusted with a ball valve manually
-Circulation water pump and vacuum pumps are optimally sized
-Stable water pressure can be supplied for vacuum calibrators with a water towel
-All commercial parts made in Turkey and Europe
|
| |
|
 |
| |
-Installed water and vacuum pumps can work without any maintenance for long times.
-Special vacuum tanks can be designed for specific extrusion production.
|
| |
|
|
 |
|
|
 |
 |
|
